10 Pairs Disconnection Krone Type Connection Module LSA PLUS Krone NT Module , Back Mounting Frame

Name: 10 Pairs Disconnection Krone Type Connection Module LSA PLUS Krone NT Module Back Mounting Frame
Brand: ANSHI
Price: 1 USD

China 10 Pairs Disconnection Krone Type Connection Module LSA PLUS Krone NT Module , Back Mounting Frame wholesale

Brand Name : ANSHI

Model Number : XL-011NT

Certification : ISO9001, CNACL, SGS, DAS

Place of Origin : ZHEJIANG, CHINA

MOQ : 100 pcs

Price : Negotiable

Supply Ability : 10000 pcs per week

Packaging Details : CARTON:53*24*24CM

Material : ABS(94 V0) or PBT

Color : White/Grey

Contact : Iron, Brass or Bronze

Type : NT module

Installation : Back&profile mount

Application : Cabling

Contact Now

10 Pairs Disconnection Krone Type Connection Module LSA PLUS Krone NT Module, Back Mounting Frame

Technique Characteristics:

The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.

Mechanical Performance	Insertion force : 40~75N
	Pull Out Force : F≥25N(axial) F≥7.5N(radial)
	IDC Life : 200 times(20-26 AWG Solid wire) minimum
	Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic	Storage Tempreture: 40 to 70°C
	Operating Temperature : 10 to 60°C
	Relative Humidity: 95%, noncondition
Electrical Performance	Insulation resistance: 1000 Mohms minimum
	Contact resistance:7 mohms maximum
	Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s

10 Pairs Disconnection Krone Type Connection Module LSA PLUS Krone NT Module , Back Mounting Frame

Product Tags:

krone connection module

krone disconnection module

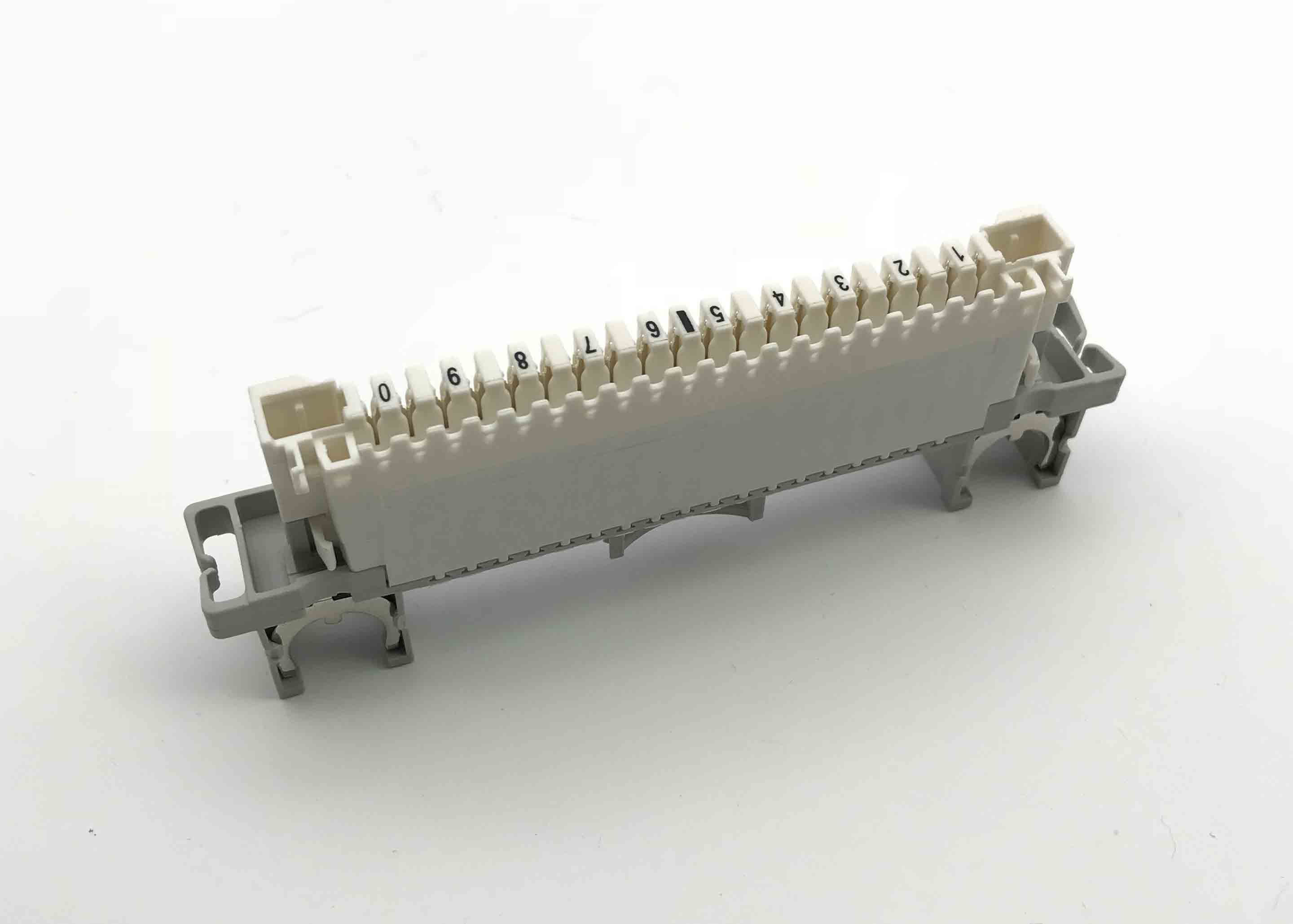

10 Pairs Disconnection Krone Type Connection Module LSA PLUS Krone NT Module , Back Mounting Frame Images
