Brand Name : ANSHI
Model Number : AS-ODF-FPP
Certification : ROHS, ISO9001
Place of Origin : China
MOQ : 100
Price : Negotiable
Supply Ability : 10000PCS/WEEK
name : Fiber optic patch panel
Material : iron
type : Drawer type
high : 1u
Adapter : FC, SC, ST, LC (Can be customized)
capacity : 24core
install : 19" rack
color : Customizable
Optical Distribution Frames ODF fiber patch panel , Fiber Optic Terminal Box rack mounted
Features:
1) 19" standard frame is used
2) Designed by full modulization:
a) Unit box has such functions as optical fiber fusion, tray storing and
distribution
b) Each fusion module can be singly taken out to meet the demands for
operating frame
3) Optical cable, pigtail fiber and patch cords can be clearly monitored
4) Convenient operation can still be guaranteed even though the capacity
has reached its maximum
5) Such adaptors as FC, SC can be installed by the fusion module
6) Working temperature: -5 – 40°C
7) Relative humidity: ≤85% (30°C)
8) Air pressure: 70 - 106kPa
9) Standard working wavelength: 850nm, 1,310nm, 1,550nm
10) Connector loss: ≤0.5dB
11) Back wave loss:
a) PC: ≥40dB
b) UPC: ≥50dB
c) APC: ≥60dB
12) Resistance to voltage between high-voltage protection ground and
frame: ≥3KV (DC) / 1min no puncture or arc
13) Insulation resistance between high-voltage protection ground and
frame: ≥1,000m&Omega / 500V (DC)
14) Life: 1,000 times
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Properties:
Classification:
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
Parameter :
Environmental temperature: | -25 - 55°C |
Relative humidity: | <85%(when the temperature is below 30°C) |
Atmosphere pressure: | 70~106Kpa |
Insulating resistance: | >2×104 MΩ/500VDC |
Voltage-resistance strength: | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |
![]() |

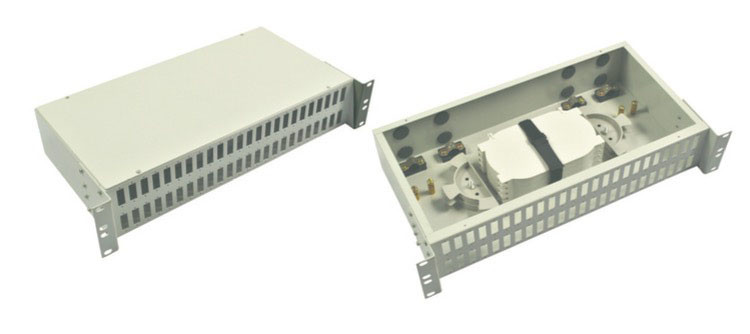

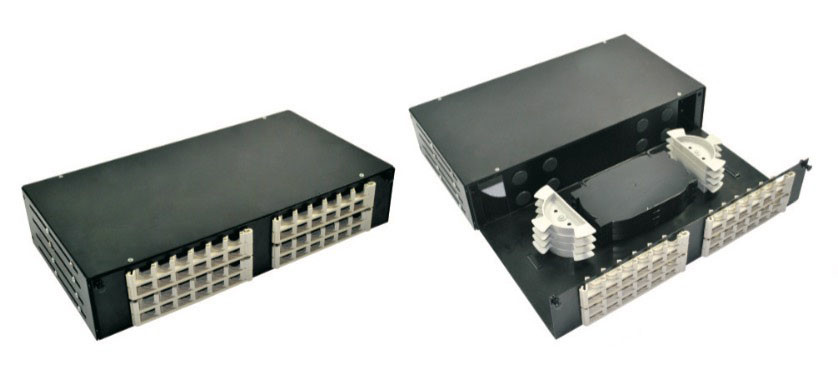

FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel Images |
